High-Velocity HVAC vs. Standard Systems for Small-Attic Homes

Homes with small attics can make HVAC replacement surprisingly complicated. A standard central system may work perfectly well in a house with plenty of room for large supply and return ducts, but older homes, low rooflines, finished upper levels, and tight attic spaces can leave very little room to route conventional ductwork.

That is where high-velocity HVAC systems, also called small-duct high-velocity systems, enter the conversation.

At Elite Air & Heat of Columbia, we believe the right HVAC system should fit the house rather than forcing the house to fit the equipment. High-velocity systems can be useful when space is limited, but they are not automatically better than standard central HVAC. The right choice depends on your available attic space, existing ductwork, comfort goals, installation budget, noise expectations, and the overall layout of the home.

Here is how high-velocity HVAC compares with a conventional system when attic space is tight.

What Is a High-Velocity HVAC System?

A high-velocity HVAC system uses much smaller ducts than a conventional forced-air system.

Instead of the larger rectangular or round ductwork commonly found in attics and crawlspaces, a small-duct high-velocity system distributes conditioned air through flexible tubes with a much smaller diameter.

The U.S. Department of Energy recognizes small-duct high-velocity systems as a type of central air-conditioning and heat-pump system.

The basic idea is straightforward.

A standard HVAC system moves a larger amount of air through relatively large ducts at moderate velocity.

A high-velocity system moves conditioned air through smaller ducts at a higher velocity.

Those small ducts can often be routed through wall cavities, between framing members, inside closets, or through cramped attic areas where standard ductwork would be difficult or impossible to install.

That space advantage is the primary reason these systems attract attention in older or architecturally challenging homes.

Why Small Attics Can Be a Problem for Standard HVAC

Traditional central HVAC systems require more space than many homeowners realize.

It is not just the furnace, air handler, or evaporator coil that needs room.

You also need room for:

• Supply trunks
• Branch ducts
• Return ducts
• Plenums
• Insulation
• Drainage
• Service access
• Electrical connections
• Refrigerant lines

Once all of that is added, a very small attic can become crowded quickly.

A large duct squeezed into an undersized space can also create installation problems. Crushing, sharp bends, poor support, excessive duct length, or restrictive transitions can interfere with airflow.

That means simply “making the ducts fit” is not always a good solution.

Poor duct design can affect:

• Airflow
• Noise
• Efficiency
• Room-to-room comfort
• Equipment performance
• System life

In some homes, a different distribution strategy makes more sense than forcing conventional ductwork through an area that was never designed to hold it.

How Much Smaller Are High-Velocity Ducts?

This is where high-velocity systems have their biggest practical advantage.

Conventional residential ducts can vary widely in size depending on airflow requirements. Main trunks may be fairly large, while individual branch runs become smaller as they approach each room.

Small-duct high-velocity systems instead use compact branch tubing.

That smaller footprint gives installers much more flexibility when working around:

• Low attic rafters
• Tight roof framing
• Dormers
• Finished ceilings
• Historic construction
• Limited chases
• Existing walls you do not want to open extensively

DOE Building America research has specifically examined small-diameter systems as a way to bring HVAC distribution into constrained spaces and notes that compact air-handling equipment can also allow installations in closets where conventional equipment may require more room.

For a homeowner trying to preserve an older house, that can be a major advantage.

Does a High-Velocity System Still Use Central Air Conditioning?

Yes.

High-velocity does not mean portable, window-mounted, or necessarily ductless.

It is still a form of centralized heating and cooling.

The major difference is how the conditioned air is distributed through the house.

A typical system can include:

• A compact air handler
• Heating and cooling equipment
• A main supply plenum
• Small flexible ducts
• Compact room outlets
• One or more return-air locations

Depending on the specific equipment and design, the system may be paired with different heating and cooling configurations.

The result still feels like central HVAC because one system conditions multiple rooms throughout the home.

How Is a Standard Central HVAC System Different?

A standard system uses larger ductwork to move conditioned air at lower velocity.

Most Columbia-area homeowners are familiar with this setup.

You typically have:

• A central furnace or air handler
• An outdoor AC unit or heat pump
• Larger supply and return ducts
• Traditional floor, wall, or ceiling registers
• One or more thermostats

For homes that already have well-designed ductwork and enough attic, crawlspace, or mechanical-room space, this approach is often straightforward.

That is one reason standard central systems remain common.

Elite Air & Heat of Columbia currently installs and services conventional central air conditioners, heat pumps, furnaces, and ductless systems throughout Columbia and the surrounding areas.

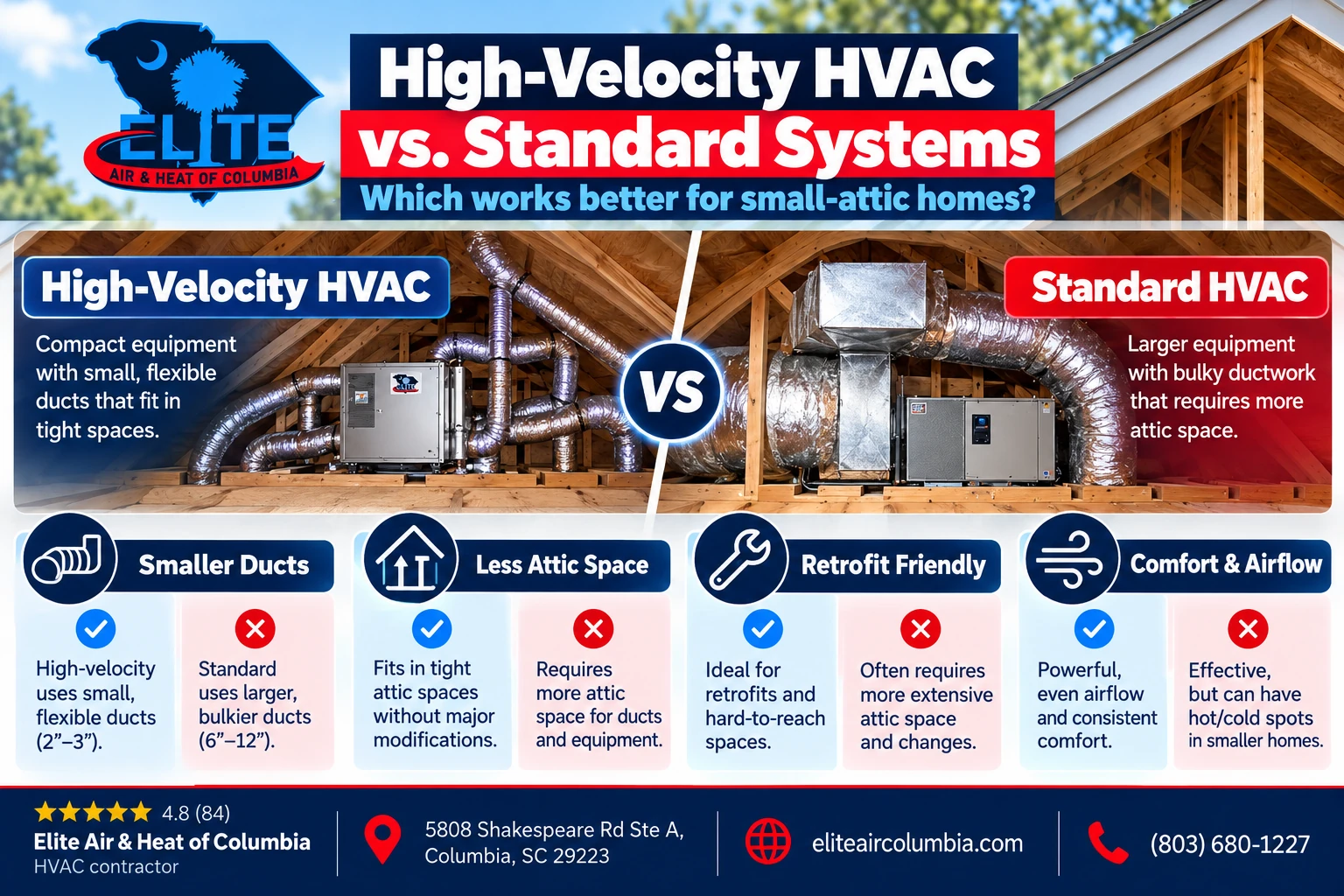

High-Velocity HVAC vs. Standard HVAC: The Quick Comparison

Feature	High-Velocity HVAC	Standard Central HVAC
Duct size	Small	Larger
Best use	Tight spaces, retrofits, older homes	Homes with adequate duct space
Visible outlets	Small round outlets	Larger registers
Installation flexibility	High	Depends heavily on duct space
Air velocity	Higher	Lower
Noise sensitivity	Design is especially important	Usually familiar and predictable
Installation complexity	Specialized	More common
Upfront cost	Often higher	Often lower when ducts already exist
Historic-home suitability	Often strong	Can require more structural disruption
Service familiarity	More specialized	Widely serviced

Neither column is automatically better.

The house should determine which characteristics matter most.

Why High-Velocity HVAC Can Work Well in Older Homes

Older homes are one of the most common situations where small-duct systems make sense.

Many older houses were built before modern central air conditioning existed.

They may have:

• Narrow wall cavities
• Plaster walls
• Finished attic rooms
• Decorative ceilings
• Limited mechanical space
• No existing duct system
• Framing that makes large duct runs difficult

Installing conventional ductwork could require significant demolition or large soffits.

That can undermine the character of the home.

Small-duct systems can sometimes reduce those compromises.

The smaller tubing can follow routes unavailable to traditional ductwork, and room outlets are less visually prominent than standard registers.

That does not mean the installation is simple.

It means there may be more options.

Are High-Velocity Systems Better for Small Attics?

Sometimes.

The answer depends on what “small attic” actually means.

If your attic has enough usable space for properly sized conventional ductwork, standard HVAC may still be the more practical choice.

If the attic is so tight that conventional ducts would have to be:

• Crushed
• Undersized
• Routed inefficiently
• Exposed inside living spaces
• Installed through major structural modifications

then high-velocity HVAC becomes more attractive.

The smaller ducts give the installer additional routing flexibility.

That can be particularly useful in homes where preserving finished ceilings and walls is a priority.

Can a High-Velocity System Improve Room-to-Room Comfort?

Properly designed systems can provide good temperature distribution.

DOE Building America research comparing a small-duct high-velocity system with conventional duct distribution found that small-diameter distribution could be a viable approach for reducing temperature stratification in certain multistory homes.

That does not mean every high-velocity installation automatically produces better comfort.

Design still matters.

Outlet placement, airflow, return-air configuration, equipment sizing, insulation, building leakage, and load calculations all influence comfort.

A poorly designed high-velocity system can perform badly just as a poorly designed standard system can.

The duct diameter does not compensate for bad HVAC design.

Is High-Velocity HVAC Noisy?

This is one of the first questions homeowners ask.

And it is a fair concern.

Air moving faster through a smaller opening has more potential to produce noticeable sound if the system is not designed correctly.

Older high-velocity installations developed a reputation for a noticeable rushing or whistling sound.

Modern systems can operate much more quietly when:

• Duct lengths are appropriate
• The correct number of outlets is installed
• Supply runs are laid out correctly
• Outlet placement is appropriate
• Airflow is balanced
• Equipment is properly sized

But homeowners who are especially sensitive to HVAC noise should discuss this before choosing the system.

Do not assume that “high velocity” means loud.

Also do not assume noise will never be an issue.

Installation quality is particularly important.

What Does High-Velocity Air Feel Like?

The individual outlets discharge air at greater velocity than a conventional register.

That does not necessarily mean you should feel a harsh blast of air while sitting in the room.

Outlet placement is designed to promote mixing of conditioned air with room air rather than directing a strong stream directly at occupants.

DOE’s high-velocity case study notes that outlets are often positioned on high sidewalls partly to reduce draft-related comfort issues.

Good placement matters.

An outlet installed directly beside a chair, bed, or work area may feel very different from one installed where air can mix throughout the room.

This is another reason a high-velocity system should be designed specifically for the house.

Which System Is Better for Humidity in Columbia?

Humidity deserves special attention in South Carolina.

Cooling a house is only part of summer comfort.

The system also needs to remove moisture.

Neither high-velocity nor standard HVAC automatically wins simply because of the duct design.

Humidity performance depends on factors including:

• Equipment sizing
• Cooling cycle length
• Airflow
• Equipment staging
• Variable-capacity operation
• Building leakage
• Indoor moisture load
• Thermostat and control strategy

A properly sized system that runs long enough to remove moisture generally has an advantage over oversized equipment that satisfies the thermostat quickly and shuts down.

Elite frequently emphasizes this issue because Columbia homes can feel uncomfortable even when the thermostat temperature looks acceptable. Our recent guidance on HVAC equipment for Columbia notes that variable-speed systems can improve humidity control because they can operate longer at lower capacity.

The lesson is simple:

Do not choose an HVAC system based on duct size alone if humidity is one of your main comfort concerns.

Look at the entire system.

Which System Is More Energy Efficient?

This question needs some nuance.

A high-velocity system is not automatically more efficient just because the ducts are smaller.

Likewise, conventional HVAC is not automatically more efficient.

Efficiency depends on the equipment and the installation.

Important factors include:

• SEER2 rating
• Heat-pump efficiency
• Equipment sizing
• Duct leakage
• Duct location
• Insulation
• Static pressure
• Blower performance
• Thermostat strategy
• Building envelope

One potential advantage of small-duct systems is that their compact ductwork may make it easier in some homes to keep more of the distribution system within conditioned space instead of running large ducts through an extremely hot attic.

DOE research has specifically investigated small-diameter systems partly because of their potential to simplify placing duct distribution within conditioned space.

That can reduce some duct-related energy losses.

But actual performance depends on the project.

What About Duct Leakage?

Any ducted system can leak if it is installed poorly.

High-velocity tubing uses many smaller runs, while conventional systems typically use larger trunks and branches.

Neither should be assumed leak-free.

Connections should be properly sealed, supported, and protected.

This becomes especially important when ducts are installed in an attic, where leakage means some of the conditioned air you paid to cool may be escaping into one of the hottest spaces in the house.

Duct design and sealing can matter just as much as the equipment efficiency printed on the product literature.

Does a High-Velocity System Cost More?

Often, yes.

Small-duct high-velocity systems are relatively specialized.

Factors that can increase installation cost include:

• Specialized air handlers
• More detailed duct routing
• Numerous individual supply runs
• Specialized design requirements
• Labor involved in retrofitting finished homes
• Limited installer availability

However, cost comparisons need context.

Suppose a standard central system appears cheaper initially, but installing it requires:

• Building several large soffits
• Removing ceilings
• Opening multiple walls
• Altering historic trim
• Reframing attic sections

The HVAC quote may be lower, while the total renovation cost is significantly higher.

For a difficult retrofit, a more expensive high-velocity system can sometimes reduce construction disruption elsewhere.

That is why homeowners should compare the total project, not just the HVAC equipment price.

When Is a Standard HVAC System Usually the Better Value?

If your home already has usable conventional ductwork, there may be little reason to replace the entire distribution system with high-velocity ducts.

A standard central HVAC system may make more sense when:

• Existing ducts are in good condition
• Attic space is adequate
• Returns are properly sized
• Airflow is already good
• Structural changes are minimal
• Standard equipment fits the home’s comfort goals

Conventional equipment is also extremely common, which can make future service and replacement straightforward.

Elite currently services all furnace and heat-pump brands and models and provides central AC replacement, heat-pump replacement, repairs, and maintenance throughout the Columbia area.

If the existing system layout already works, completely changing distribution types should have a clear benefit.

Could Ductless Mini-Splits Be a Better Alternative?

Possibly.

High-velocity and conventional central HVAC are not the only choices for a tight-attic home.

Ductless mini-splits can be especially useful for:

• Finished attic rooms
• Home additions
• Individual upstairs bedrooms
• Garages
• Converted spaces
• Areas with no practical duct route

Instead of forcing new ductwork through the attic, a mini-split uses refrigerant lines connecting outdoor equipment to indoor units.

Elite currently offers ductless mini-split repair and replacement in Columbia.

The main tradeoff is appearance.

Traditional mini-split indoor units remain visible within the room, while a central high-velocity system uses small outlets that may blend more subtly into walls or ceilings.

Some homeowners prefer the look of small-duct outlets.

Others prefer the simplicity and room-by-room control of ductless systems.

Could HVAC Zoning Solve the Problem Instead?

Sometimes the attic itself is not the real issue.

The homeowner may be considering a new system because the second floor is always hotter than the first.

That could involve:

• Poor duct balancing
• Inadequate return air
• Building-envelope problems
• Solar heat gain
• Equipment sizing
• Duct leakage
• Lack of zoning

Elite provides HVAC zoning services in Columbia and currently offers in-home assessments to determine whether zoning could improve temperature control.

Before rebuilding the entire HVAC distribution system, it makes sense to identify why the home is uncomfortable.

A different thermostat strategy or duct modification may be enough.

Can You Put a Standard Air Handler in a Tiny Attic?

Physical fit is only one consideration.

A technician also needs safe access for:

• Installation
• Repairs
• Filter replacement
• Drain maintenance
• Electrical service
• Coil replacement
• Future equipment removal

An air handler technically fitting through the attic opening does not necessarily mean the space is appropriate.

Service access matters.

If equipment is jammed into a nearly inaccessible corner, simple maintenance can become unnecessarily difficult.

That is one reason compact HVAC equipment or relocating the air handler to a closet may be worth considering in a space-constrained home.

DOE’s comparison of standard and high-velocity systems noted the compact nature of the small-duct system’s air-handling equipment as an installation advantage in the studied homes.

What About Condensation in a Small Attic?

Attic HVAC installations need careful attention to moisture.

Air handlers and cooling coils produce condensate.

Cold duct surfaces in a hot, humid attic can also develop condensation if insulation or vapor control is inadequate.

That creates potential problems including:

• Ceiling stains
• Wet insulation
• Mold growth
• Wood damage
• Corrosion
• Indoor humidity problems

A tighter attic makes inspection and repair more difficult, so drainage and insulation should be considered during system design rather than after the first leak.

This applies to both standard and high-velocity systems.

Small ducts do not eliminate the need for good moisture management.

Questions to Ask Before Choosing High-Velocity HVAC

If a contractor recommends a high-velocity system, ask why.

Useful questions include:

• Why is standard ductwork impractical in my home?
• How much construction would conventional ducts require?
• Where will the high-velocity air handler go?
• How many outlets will each room need?
• Where will the return air be located?
• What sound level should I expect?
• How will the system handle humidity?
• Can the equipment be serviced easily?
• What happens if I need replacement parts later?
• Are there ductless or zoning alternatives?
• What is the total installed cost of each option?

You should understand the practical reason for selecting a specialized HVAC system.

“We can make it fit” is not enough.

When High-Velocity HVAC Makes the Most Sense

A small-duct system deserves serious consideration when:

Your Attic Has Very Limited Space

Large conventional ducts cannot be installed correctly without compromising airflow or structure.

You Own an Older or Historic Home

You want central HVAC while minimizing major demolition.

You Do Not Want Large Soffits

Small ducts can potentially avoid visible boxed-in duct runs.

You Are Retrofitting a Home Without Existing Ductwork

Routing smaller tubes may be considerably easier than adding a complete conventional duct network.

Architectural Details Matter

Compact outlets may be less visually disruptive than conventional registers.

In these situations, high-velocity can solve a real building problem rather than simply serving as an equipment upgrade.

When Standard HVAC Probably Makes More Sense

Conventional central heating and cooling often remains the practical choice when:

• Good ductwork already exists
• There is adequate attic or crawlspace room
• Installation does not require major structural changes
• Budget is a primary concern
• Local service availability matters
• The homeowner wants familiar equipment and controls

There is no benefit in choosing a specialized system simply because it sounds more advanced.

If conventional HVAC fits correctly and meets the home’s needs, simplicity can be an advantage.

The Best HVAC System Is the One Designed Around the House

At Elite Air & Heat of Columbia, we regularly remind homeowners that equipment specifications only tell part of the story.

A premium HVAC unit connected to poorly designed ducts can perform badly.

A modest system installed correctly can provide excellent comfort.

The same principle applies to high-velocity versus conventional HVAC.

A high-velocity system can be a useful solution for a tight attic, historic home, or difficult retrofit.

A standard central system may be the better choice if the home already has suitable ductwork and adequate installation space.

And in some properties, ductless equipment, zoning, or a combination of approaches may make more sense than either option.

Elite’s own 2026 Columbia HVAC guidance makes the same broader point: the best system depends on the home’s ductwork, humidity needs, layout, and comfort goals rather than simply picking a particular equipment category.

Have Elite Air & Heat Evaluate Your Small-Attic Home

If attic space is making an HVAC replacement complicated, do not assume your only choices are oversized ductwork or tearing apart finished rooms.

At Elite Air & Heat of Columbia, we can evaluate the home’s existing HVAC system, duct layout, available mechanical space, comfort problems, and replacement options before recommending a solution. We provide AC, heat-pump, furnace, ductless, and zoning services throughout Columbia and surrounding communities.

The goal should be a system that fits the building, provides adequate airflow, manages South Carolina humidity, and remains accessible for future maintenance.

Call Elite Air & Heat of Columbia at (803) 368-4663 to schedule an HVAC evaluation. We can help you compare the realistic options for your home and determine whether conventional central HVAC, a compact alternative, ductless equipment, or another configuration makes the most sense.
